DTM PRIMERA AP550e Label Applicator
DTM PRIMERA AP550e Label Applicator
€2,495.00*
Available in 5 days, delivery time 1-3 days
Product number:
P074392
Product information "DTM PRIMERA AP550e Label Applicator"

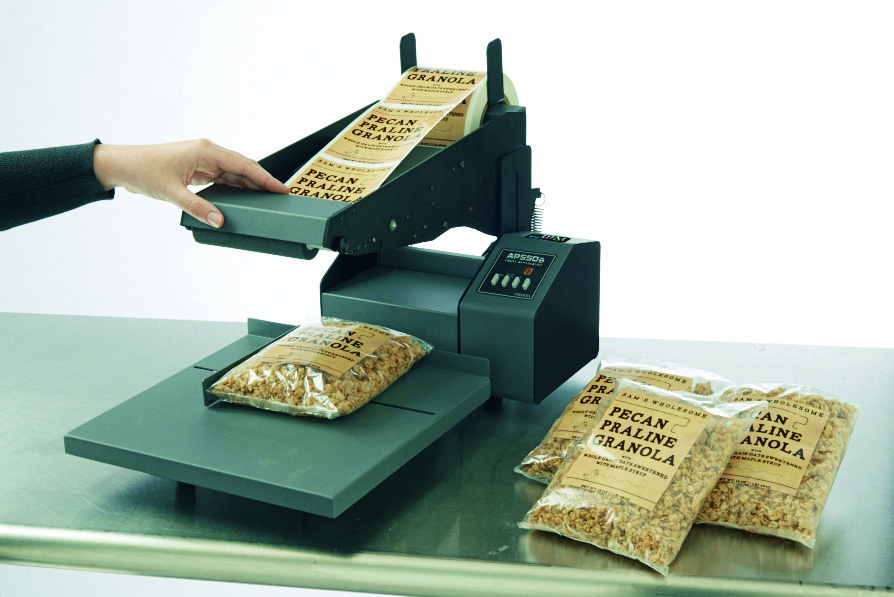

DTM PRIMERA AP550e labeling system
Semi-automatic labeler that can apply product and type labels quickly, easily and accurately to a wide range of flat surfaces such as rectangular or conical bottles, boxes, packages, bags, pouches, lids and much more.
- Speed: Up to 500 containers per hour
- Container shape: flat and conical
- Container platform: 305 x 310 mm (12" W x 12.2" D)
- Container diameter: 0.05 mm - 203 mm (0.002" - 8")
- Container width: 19 mm - 310 mm (0.75" - 12.2")
- Container height: 0.05 mm - 203 mm (0.002" - 8")
- Label width: 19 mm - 101.6 mm (0.75" - 4")
- Label height: 19 mm - 152.4 mm (0.75" - 6")
- Label roll: Up to 203 mm (8") OD with 50.8 mm or 76.2 mm (2" or 3")
ID externally wrapped, pre-punched, weeded, with black marking strip (black mark, bottom) or gap (die-cut).
(Transparent labels require a black mark.) - Distance between labels: Recommended: 3.175 mm - 6.35 mm
- Wrapping direction: Wrapped outwards
- Label placement: Within 203 mm (8") feed range of the stop edge
- Outer diameter of the roll core: 203 mm (8") (maximum)
- Reel core inner diameter: 50.8 mm to 76.2 mm (2" to 3" ID)
- Media scanning: Optical sensor
- Control displays: LED display with built-in counter and job memory
- Control buttons: Mode, Recall/Reset, Up, Down
- Power supply: 100-240V AC (50/60 Hz), 12V DC, 5.0 A
- Weight: 10.9kg
- Dimensions (WxHxD): 305 x 541 x 256-391 mm
Scope of delivery:
AP550e labeler, quick start guide, universal power supply
